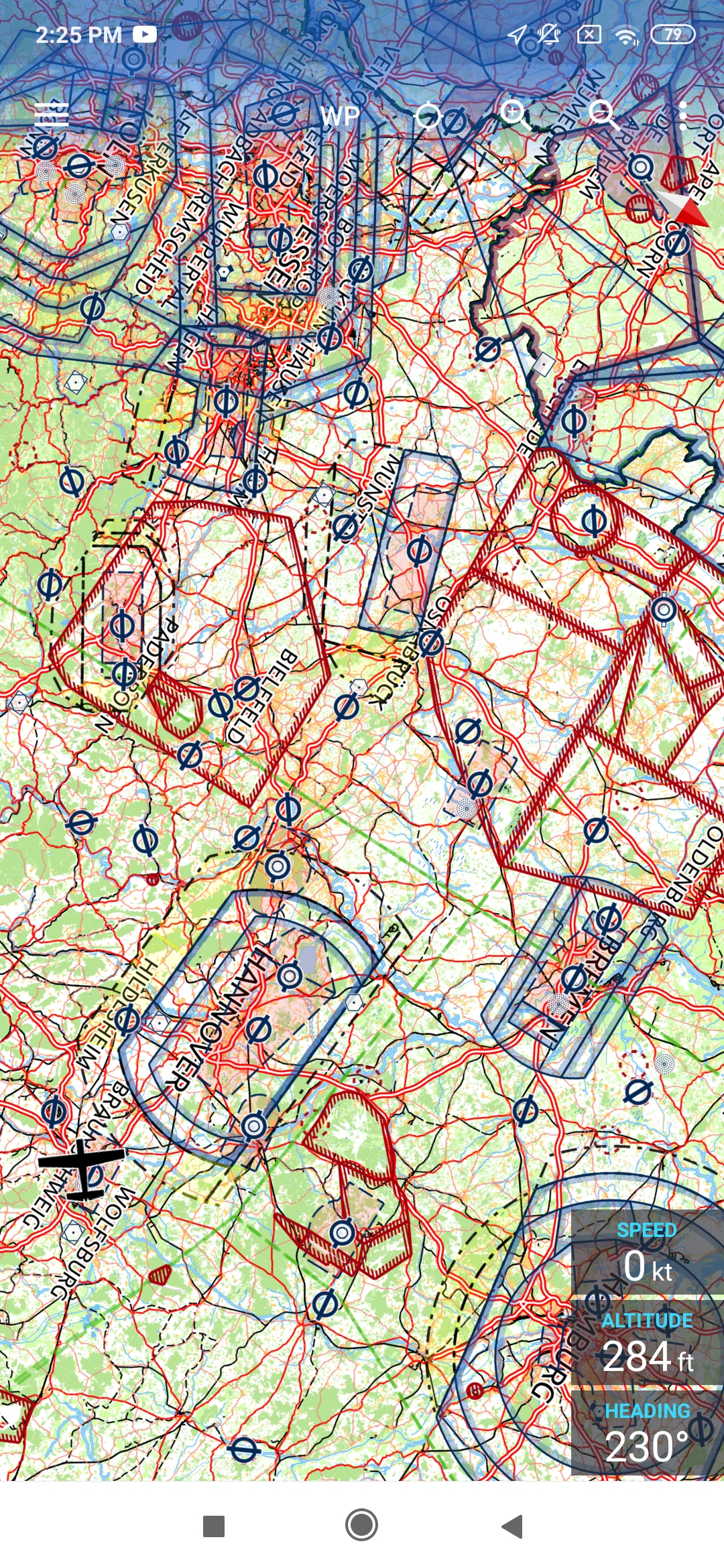

This screen is what you will see, when you first open the app. To choose a waypoint, click on the point you want of the map and choose between "DIRECT TO" or "ADD WAYPOINT". If you click on "DIRECT TO", the navigation to this waypoint will begin. If you click on "ADD WAYPOINT" the waypoint will be added to your waypoint list. The black airplane indicates you current position.
By clicking on this icon, you will reach the route-planer and the waypoint-list.

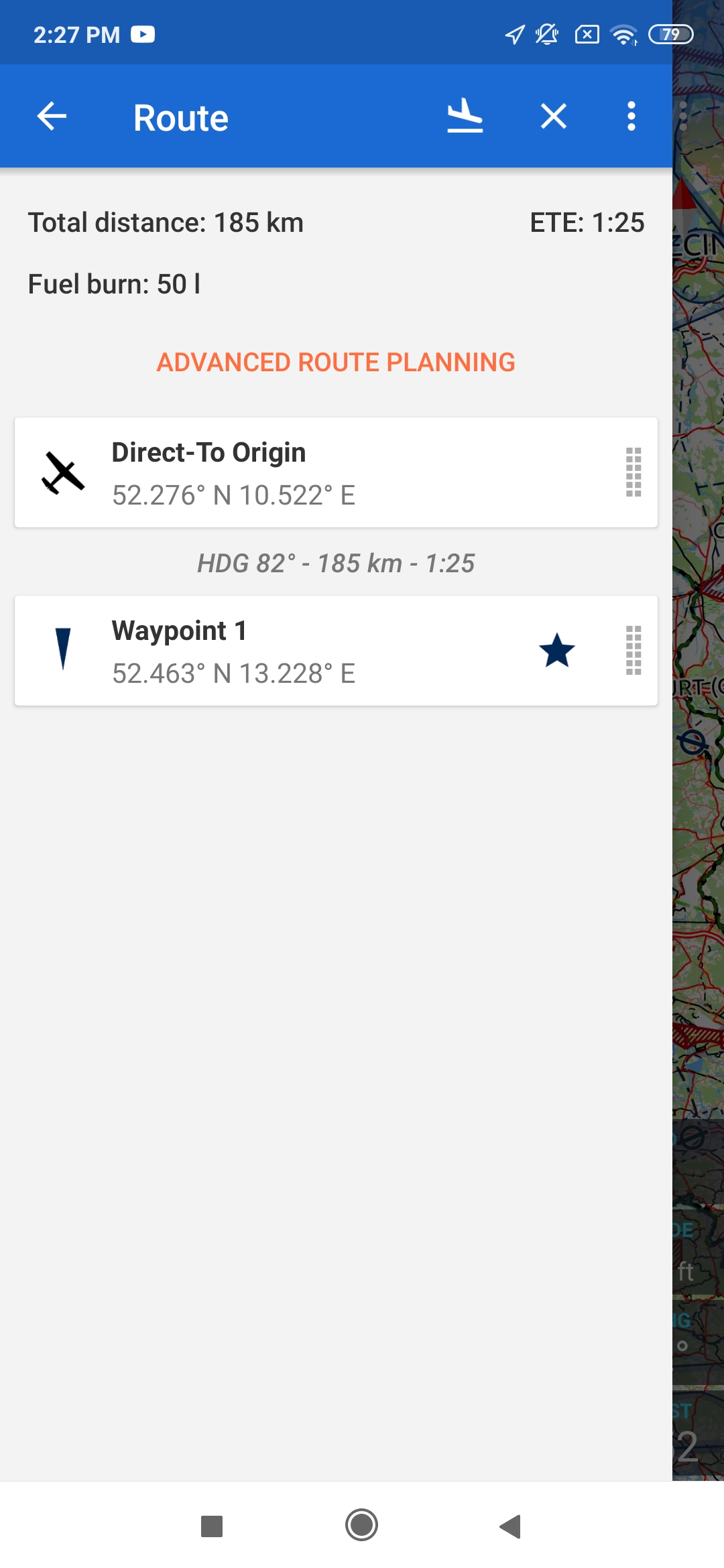

This screen is the route-planer. It will show all your waypoints.
The airplane in the upper right corner allows you to start or end the navigation. A departing airplane starts the navigation and a landing airplane ends the navigation. The navigation starts automatically if you are near your first waypoint while opening a route and ends automatically if you have reached your final waypoint.
Under "ADVANCED ROUTE PLANING" you can see all the information about your chosen route.
The "Direct-To Origine" is the waypoint you’re actually flying to.

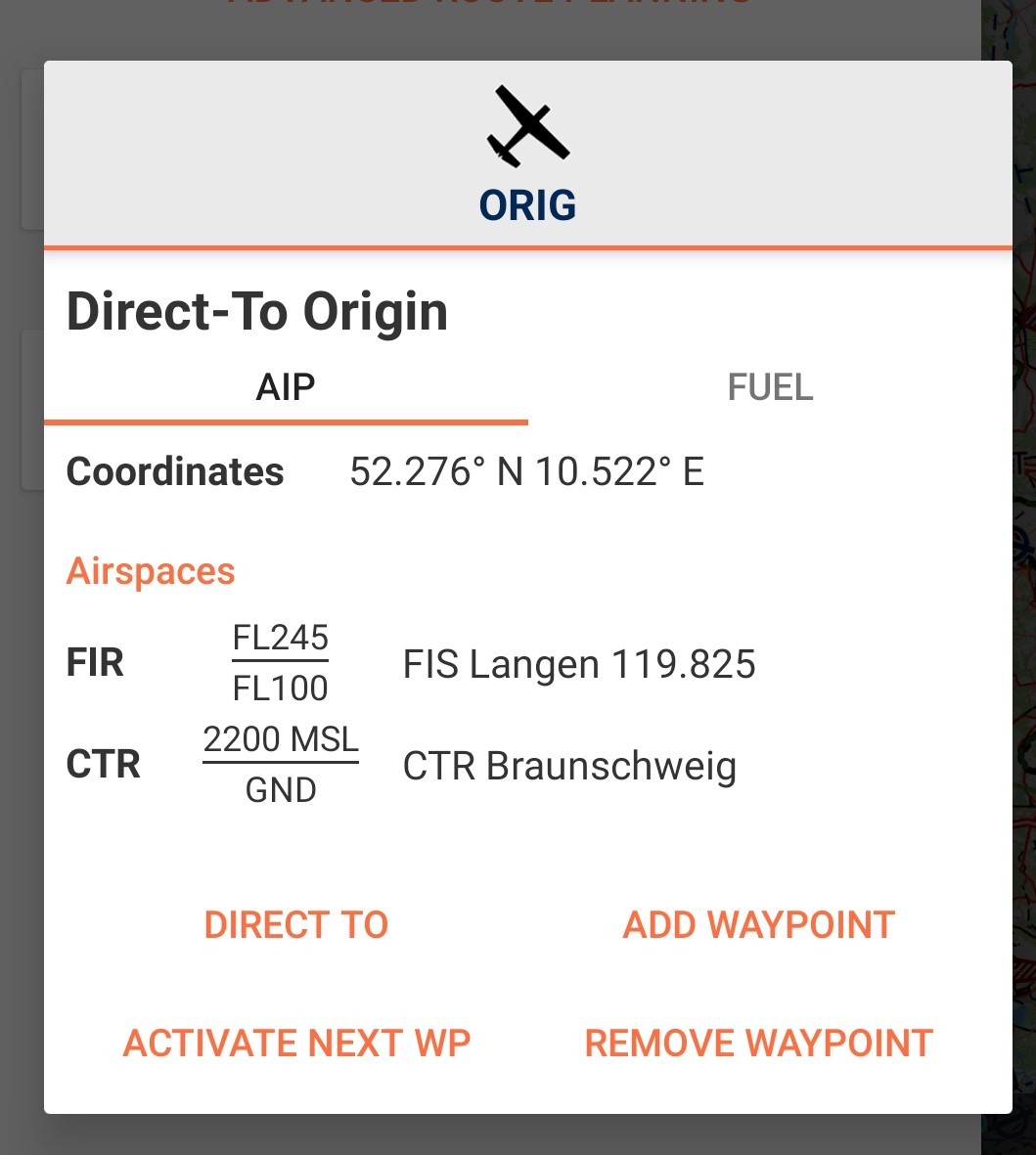

By clicking on "Direct-To Origine" you can choose to navigate to the next waypoint, add another waypoint or remove the current one. Under "FUEL" you can write down the fuel you are departing with. The screen also indicates the coordinates of your waypoint and the airspaces you are flying through.
If you want to add a waypoint or remove a waypoint or fly to a waypoint of your waypoint-list, you have to click on the waypoint.

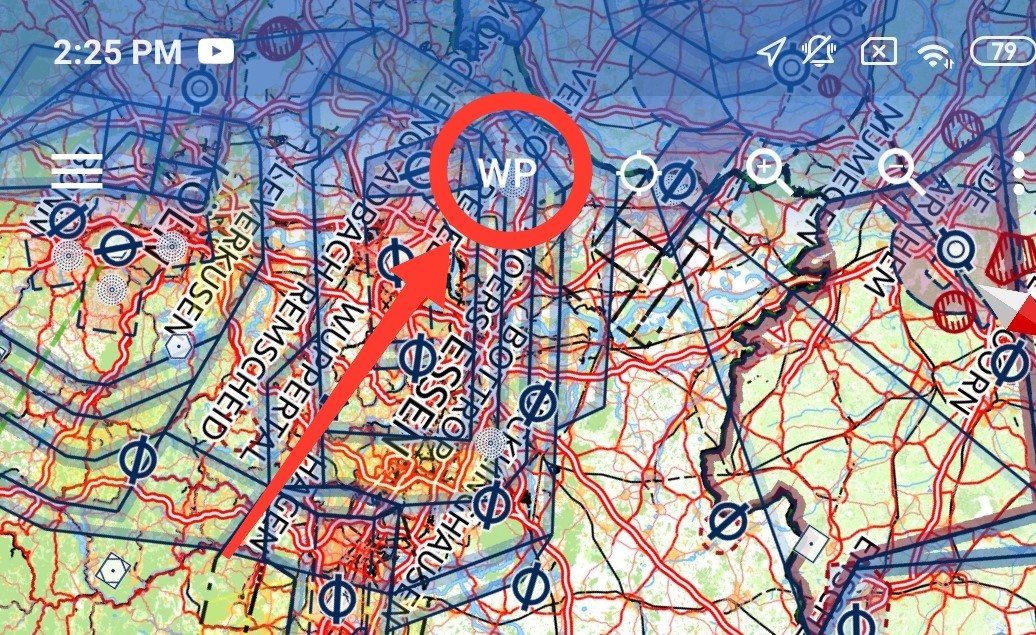

The "WP" allows you to search for waypoints by introducing keywords. It is a searching option.

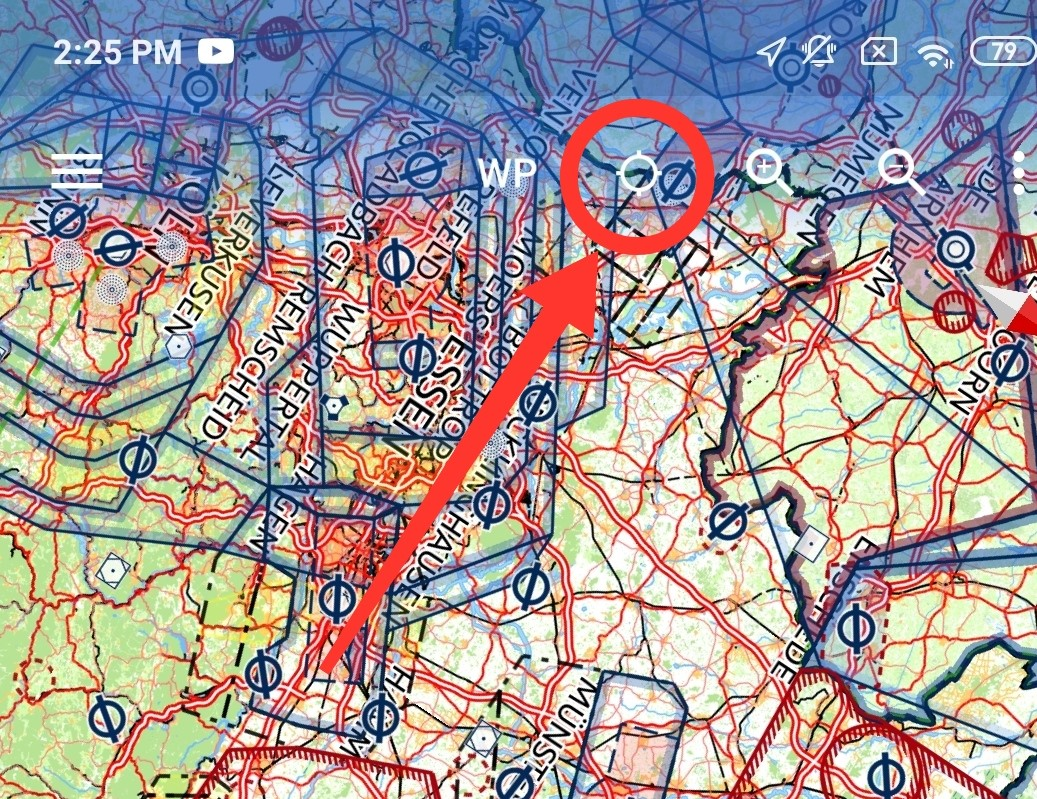

This localization icon allows you to relocate the app so that your actual position (black airplane) appears in the center of the screen.

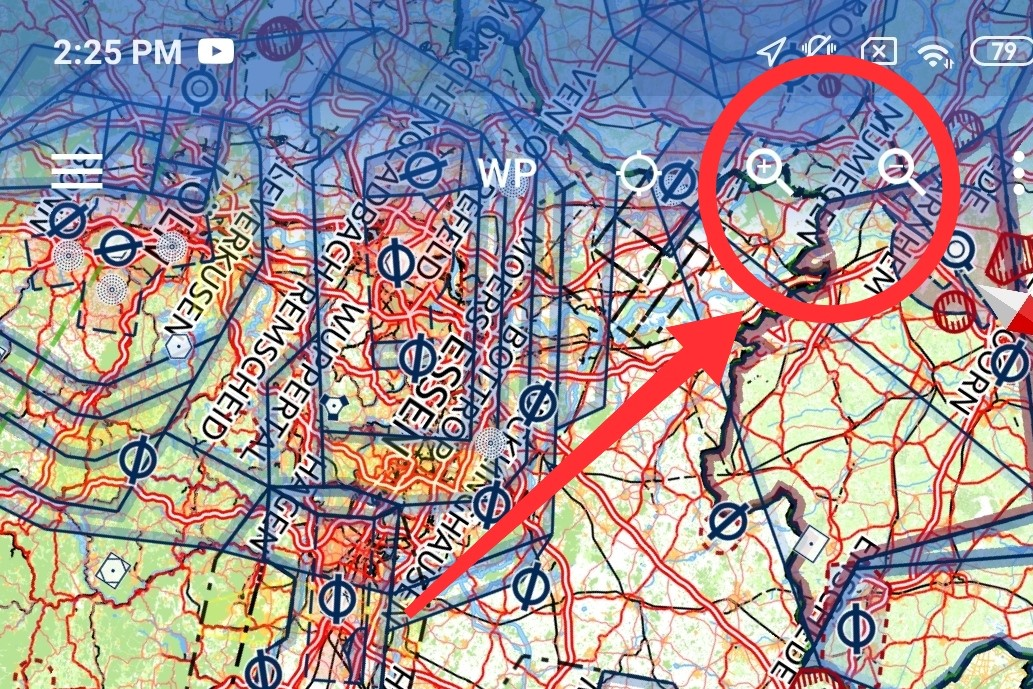

Those two magnifying glasses allow you to zoom in or out of the map. You also can zoom in and out of the map using two fingers. Using one finger you can move around the map.

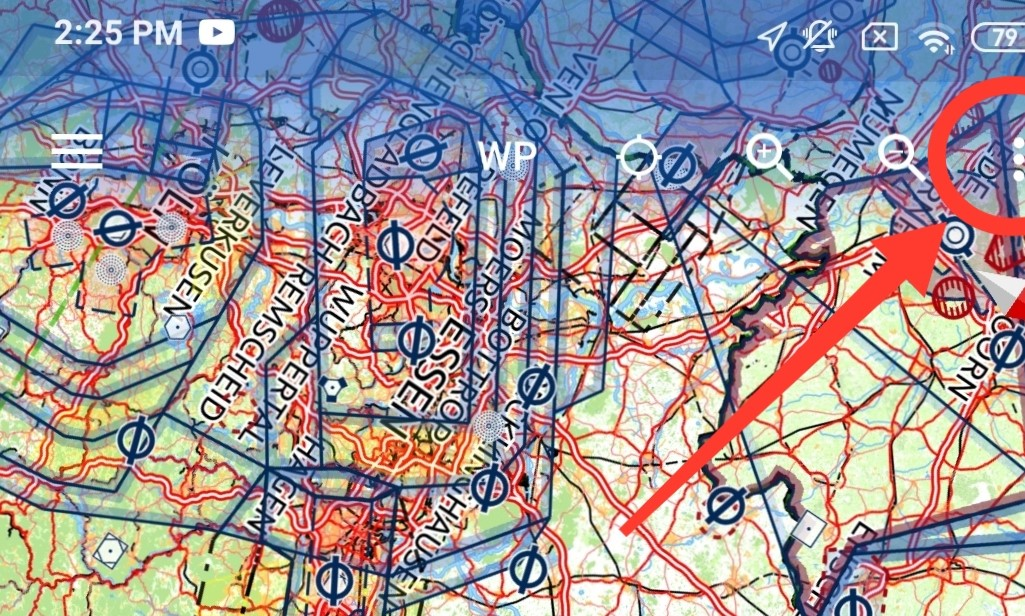

The three points in the upper right corner lead to the menu shown in the next picture.

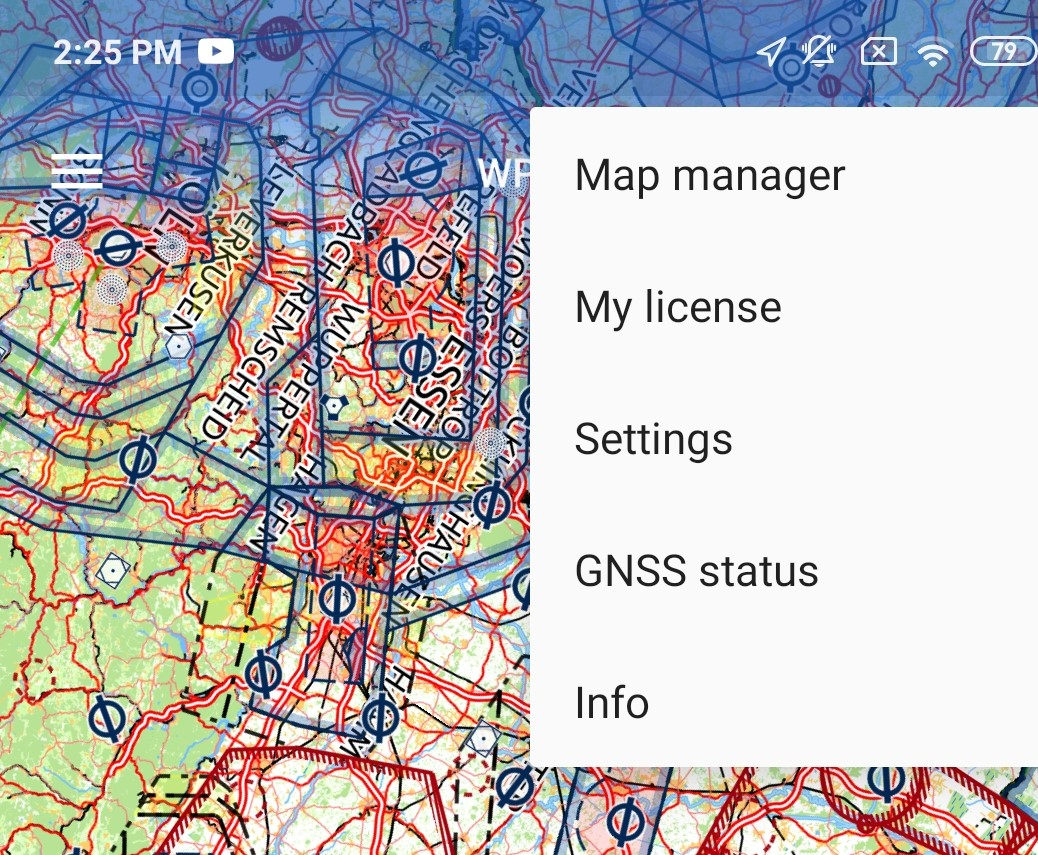

The menu contains five further categories.
Under "Map manager" you can download new parts of the world map or change the map you already downloaded.
Under "My license" you obtain every information of your actual license of the app.
Under "Settings" you have several options like clearing your cache, changing the app behavior regarding the automatic activation etc., changing the units and presets, explanations of the different symbols of the map etc.
Further you can get an inside in the "GNSS status" and in every information regarding the app like data sources, version etc.
